Self Loading Ready Mix Concrete Mixer Trucks Dongfeng Cummins Mobile Concrete Mixer Truck

تصویر بزرگ : Self Loading Ready Mix Concrete Mixer Trucks Dongfeng Cummins Mobile Concrete Mixer Truck

جزئیات محصول:

محل منبع:	چین
نام تجاری:	CLW / Chengli
گواهی:	CCC,ISO,
شماره مدل:	CLW5040

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	negotiable
جزئیات بسته بندی:	بسته برهنه با موم
زمان تحویل:	20-30 روز
قابلیت ارائه:	600 واحد در ماه

مخاطب

توضیحات محصول جزئیات

سبوس:	دونگفنگ ،	موتور:	کامینز، یوچای، چائوچای
جعبه دنده:	6 جلو و 1 عقب	ظرفیت میکسر:	5CBM، 5000 لیتر، 6CBM، 6000 لیتر
موتور هیدرولیکی:	ایتون، پی ام پی،	پمپ هیدرولیک:	EATON، PMP، Bonfiglioli،
کاهنده:	ZF، PMP، Bonfiglioli، Sauer
برجسته کردن:	self mixing concrete truck,concrete mixing transport trucks , concrete mixing transport trucks

6CBM 7CBM Ready Mixed Cement Self Loading Dongfeng Cummins Concrete Mixer Truck

Product Description

6-7Cubic Meters Ready Mixer Concrete Transportation Mixer Truck

1. Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacaman,

2. High Tension Steel Q345B Tank Material in 5mm body & 6mm End plate.

3. International Brand Motor, Pump, Reductor & Radiator

4. 400Liter Water Tank with Pressure Water Filling

5. Water Filling System to Keep the cement moisture.

6. Tank and hand Washing Device.

Specifications of 6-7CBM Concrete Mixer Truck

Item No.	Parameters
Overall Dimension	7900x2490x3450 mm
Gross Vehicle Weight	13950 kg
Curb Weight	6950 kg
Loading Weight	7000 kg
Wheel Base	4500 mm
Front/rear Tread	1940 /1860 mm
Approach/Departure Angle	34/18 degree
Front Axle	1 x 5,000 kg
Rear Axle	1 x 10,000 kg
Cabin	RHD Dongfeng Cabin, Front Tipping with Air Conditioner.
Engine	Cummins, Diesel Engine B190 33, EURO III, 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Engine Horsepower	190 HP
Displacement	5.900 L / 5900cc
Gearbox	6 Forward Gear & 1 Reverse Gear
Brake	Automatic Air-cut Brake
Max Driving Speed	90 Km/h
Tire	10.00R20, 6 pieces with one spare
Mixer Drum Capacity	6 Cubic Meters
Tanker Material:	Q345 high tensile carbon steel, 6mm end plate, 5mm mixer body.
Hydraulic Pump	Italian PMP Brand
Hydraulic Motor	Italian PMP Brand
Reducer	Italian PMP Brand

Upper Mixing System
Volume	6 CBM
Water Supply Patterns	Air Pressure
Material	Q345
Thickness	6 mm Tank End plate, 5mm for Tank Body, Automatic Welding
Water Tank Capacity	350 (L)
Rotation Speed	0-15 (r/m)
Feeding speed	3 (M3/min)
Discharging Speed	2 (M3/min)
Material Remaining Ratio	≤0.5%
Effective Mixing Volume	6 CBM
Mixing Capacity	6 CBM
Angle of Inclination	15°

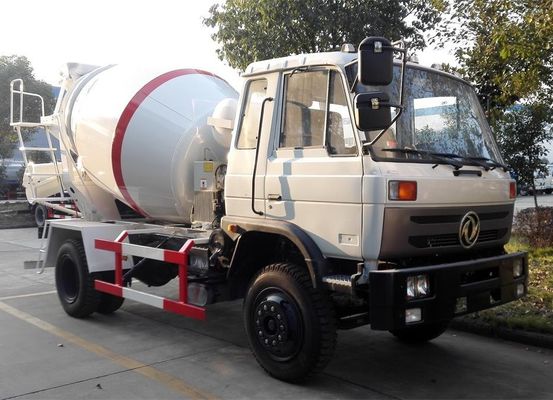

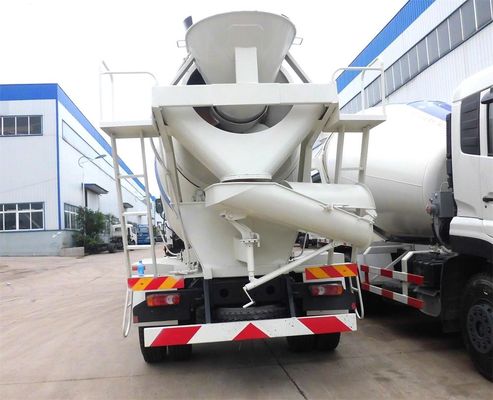

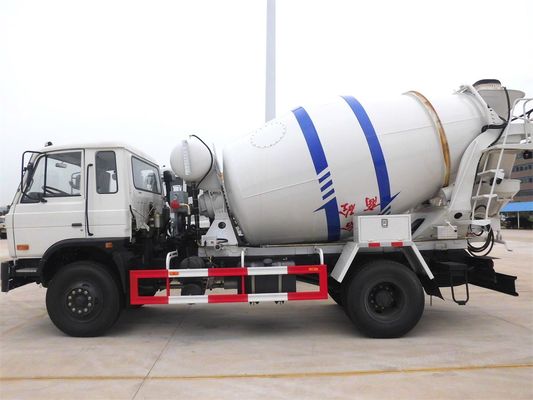

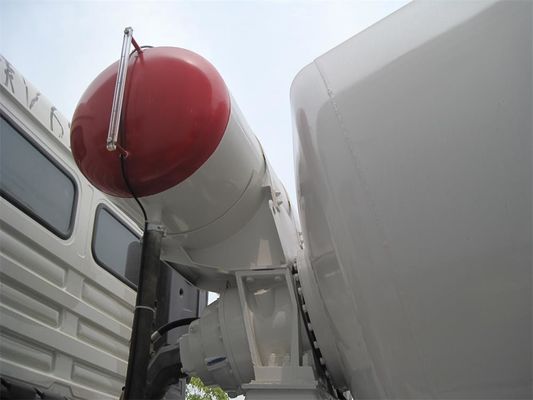

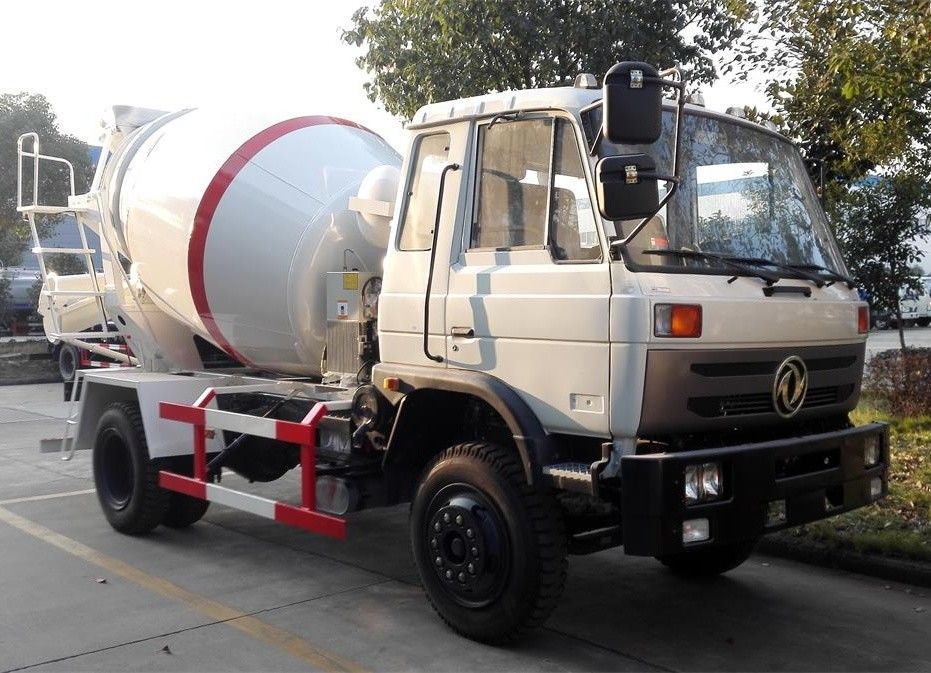

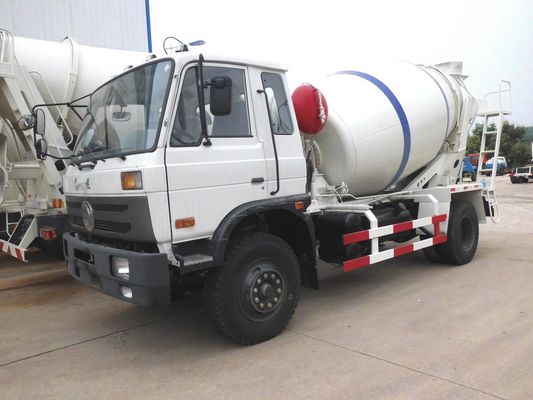

Product Photos

Self Loading Ready Mix Concrete Mixer Trucks Dongfeng Cummins Mobile Concrete Mixer Truck 0

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of concrete mixer trucks I can order from your company?

A: There are various sizes and types of concrete mixer trucks with different functions,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied concrete mixer truck to any overseas companies?

A: Yes,with need of government project,we offered concrete mixer trucks to many Africa and south-east Asian countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
